Recently, Continental , an international auto parts supplier, signed a licensing and engineering service agreement with Fallbrook Technology . The focus of the collaboration is NuVinci® gearbox technology developed by Fallbrook. The NuVinci® Planetary Continuously Variable Transmission (CVP) is an innovative continuously variable transmission (CVT) that uses a rotating ball to achieve infinitely variable transmission ratios. “This cooperation with Fallbrook has provided us with a good opportunity to expand our business activities in the personal transportation field in the city,†said Rudolf Stark, head of the gearbox control business unit of the Continental Powertrain Business Unit. Gearbox-based, development of new electromechanical drive solutions for urban transport."
NuVinci® Planetary Continuously Variable Transmission (CVP)
“We look forward to cooperating with a successful large-scale integrated company such as Continental Group,†said William G. KlehmIII, president and chief executive officer of Fallbrook Technology Corporation. “This cooperation marks a solid step forward for us to achieve the goal of fully promoting NuVinci technology. We have already occupied an important position in the bicycle industry and our influence in the automotive industry is also expanding.In this industry, our licensees have made significant progress in developing products that can be put on the market directly. In cooperation, we will have more opportunities to develop groundbreaking new applications."
In the NuVinci gearbox, Fallbrook uses the rotating spheres arranged in a circle to achieve a change from Gears to SpheresTM. The tilt ball is located between the input and output components of the gearbox. By tilting the ball, the contact diameter can be changed to change the gear ratio. NuVinci gearboxes can be configured to replace a variety of planetary gearboxes, while achieving a more compact size and increasing system efficiency.
This technology has a common feature and can be used to develop customized products that meet the needs of applications ranging from fixed equipment to bicycles and automobiles.
New-designed RCM series of industrial chillers are capable of controlling precisely the mold temperature in plastic molding
process as so to shorten molding cycle and speed product formalization. The principle of heat exchange is adopted for cooling.
They can achieve rapid cooling, stable temperature controlling, and will be little effected by the surrounding factors. Therefore they
are necessary good equipments in modern industry.
1. Cooling temperature range 5-35 ℃.
2. High-capacity tube-in-shell evaporator with very good heat exchange performance especially under high ambient temperature condition.
3. Tube-fin double condensers with excellent heat transfer and rapid cooling.
4. Stainless steel warm-keeping tank.
5. R22 refrigerant to be used for efficient cooling.
6. R407 environment-friendly refrigerant is optional to use.
7. Overload protection for compressor, pump and blower.
8. Independent Temperature Controller, anti-freeze protection.
9. Phase sequence protection for control circuit, refrigeration loop controlled by high and low pressure switch.
10. Warm-keeping design for all piping to avoid partial convection.
11. Suitable for machine cooling in industries of plastics, electroplating, foodstuff, electronic products, bleaching and dyeing, ultrasonic.
<
| Model | RCM3A | RCM5A | RCM8A | RCM10A | RCM12A | RCM15A | RCM20A | RCM25A | RCM30A | |
| chillling capaciity | KW | 7.5 | 12.5 | 18 | 23 | 28 | 36 | 46 | 58 | 72 |
| KCAL/H | 6450 | 10750 | 15480 | 19780 | 24080 | 30960 | 39560 | 49880 | 61920 | |
| Compressor type | Scroll compressor | |||||||||
|
Compressor outputpower |
HP | 3 | 5 | 8 | 10 | 12 | 15 | 20 | 25 | 30 |
| Refrigerant | R22/R407C | |||||||||
|
Refrigerant Filling quantity |
KG | 2 | 3 | 5 | 6 | 7.5 | 10 | 12 | 15 | 20 |
| Pump power | KW | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 | 2.2 | 2.2 | 2.2 | 2.2 |
| Pump max.flowrate | L/MIN | 100 | 100 | 100 | 200 | 200 | 600 | 600 | 600 | 600 |
| Pipe size outlet | INCH | 1" | 1" | 1" | 1．5" | 1.5 | 1.5" | 2.5" | 2.5" | 2.5" |
| Pipe size outlet | INCH | 1" | 1" | 1" | 1．5" | 1.5 | 1.5" | 2.5" | 2.5" | 2.5" |
| Blower power | KW | 0.25 | 0.19x2 | 0.25x2 | 0.42x2 | 0.25x4 | 0.25x4 | 0.42x4 | 0.42x6 | 0.42x6 |
| Tank capacity | L | 56 | 65 | 113 | 129 | 173 | 173 | 271 | 350 | 400 |
| (L) | mm | 1090 | 1250 | 1350 | 1350 | 1700 | 1700 | 1900 | 2150 | 2150 |
| (W) | mm | 760 | 760 | 860 | 960 | 1200 | 1200 | 1200 | 1480 | 1480 |
| (H) | mm | 1250 | 1320 | 1560 | 1620 | 1750 | 1750 | 1750 | 1800 | 1800 |

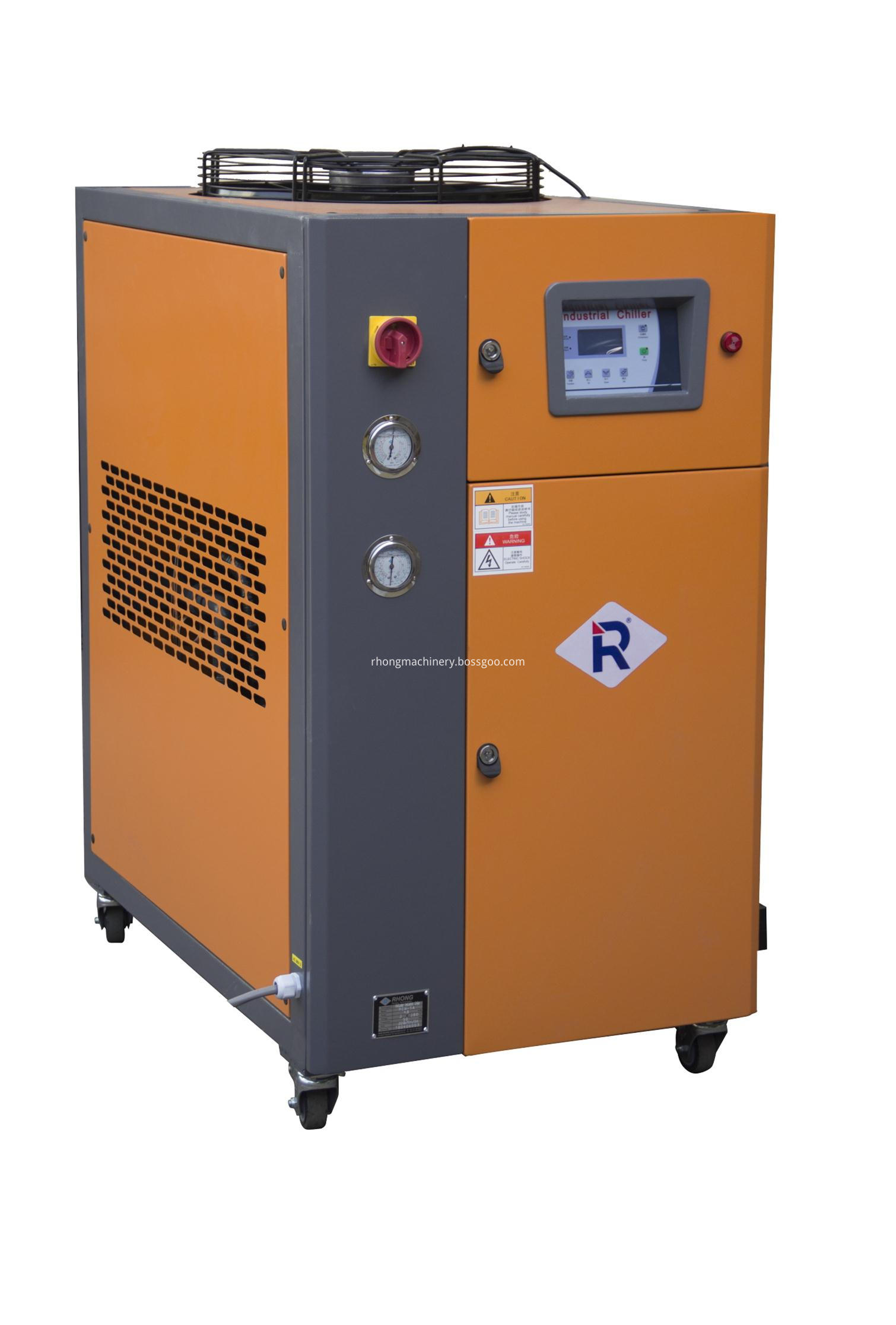

Scroll Type Air-cooled Industrial Chiller
Scroll Type Air-cooled Industrial Chiller,Air-cooled Industrial Chiller,Air-cooled Scroll Type Micro Industrial Chiller,Standard Air-cooled Industrial Chiller
