Textile Spare Parts for Comber Machine Saw Whole Cylinder Jzx-4tc1-Et/5 or Jsfa286-0800-19

Model NO.: Jzx-4tc1-Et/5 or Jsfa286-0800-19
Processing Trade: Processing with Imort Material
Certification: ISO9001: 2000
Customized: Non-Customized
Condition: New
Trademark: jinfeng
Transport Package: Cartons Packing/Wooden Case Packing
Origin: China
HS Code: 8448399000
By using several patent technologies, Pins &Teeth Circular Comb can meet the requirements of high speed, high production, high quality, and high efficiency.
1,NEW STRUCTURE
Patent structure (pins in front area,teeth in middle and back area) ensures more reasonable fiber bundle penetration and carding.
2,GREATER EFFECTIVENESS
The operating angle, taper angle,depth of teeth are all big in the front and small in the back of circular comb. The density of teeth increases along with coming direction. This design ensures better performance than regular design.
3,EASY TO ADJUST
Easy to adjust to meet various requirements.
4,LONGER LIFE SPAN
Special customize imported steel strip with special heat treatment. Better abrasive resistance and crushing resistance.
5,LOWER COST
Easier to repair with lifting assemble design;Design of teeth and smooth surface provides better piercing force and reduce short fiber, cotton knot and impurity.
Textile Spare Parts for Comber Machine Saw Whole Cylinder Jzx-4tc1-Et/5 or Jsfa286-0800-19
RIETER Circular Comb For Cotton Combing Machine
circular comb for cotton combing machine Type Part number Outside diameter & inner diameter Width insert cavity position  total number of gears/group
125-95*85 JZX-5T-E(95°) JF130-00/343 Φ125.4
Φ85
324 210*120° 34280/6
JF130-00/379 37914/6
JF130-00/417 41732/6
jf130-00/451 45054/6
JF130-00/482 48152/6
JF130-00/522 52282/6
125-90*85 JZX-4TC1-E(90°) JF108TC1-00/299A Φ125.4
Φ85
324 210*120° 29957/5
JF109TC1-00/521A 35608/5
JF108TC1-00/397A 39736/5
125-111*85 JZX-4TC1-E(111°) JF109TC1-00/499A Φ125.4
Φ85
324 210*137° 49908/6
JF109TC1-00/521A 52136/6
JF109TC1-00/564A 56453/6
125-130*30 JZX-5-E80(130°) JF134-00/566 Φ125.4
Φ30
310 3*90(=270) 56636/8
JF134-00/603 60382/8
Use in:
RIETER:E7/4,E7/5,E7/5A,E62,E65,E66,E67,E80;
TaiHang:FA299;
HengXin:SXFA299B;
HaoChang:HC350,HC500,HC600;
KaiGong:JSFA288,JSFA388,JSFA588;
HongYuan:HY68,HY69;
BEST:BS290;
Hongji:SXF1268,SXF1269,SXF1278;
BaoCheng:BHFA296;
JinWei:JWF1268,JWF1272A,JWF1275,JWF1276;
JinWeiHeLi:FA261,FA266,FA269,FA1278;

Products are suitable for different grade and different yarn count combed yarn.
We can also offer special configuration according to customers' requirements.
Circular comb for RIETER E7/4 is available.


CJ60/40 Circular Comb for Cotton Combing Machine
circular comb for cotton combing machine Type Part number Outside diameter & inner diameter Width insert cavity position total number of gears/group
127-95*85





JZX-4TC1-CJ60(95°)





JF131-00/343 Φ127
Φ85











321





295*120°








34280/6
JF131-00/379 37914/6
JF131-00/417 41732/6
JF131-00/451 45054/6
JF131-00/482 48152/6
JF131-00/522 52282/6
127-90*85


JZX-4TC1-CJ60(90°)


JF112TC1-00/307A 320


30764/5
JF112TC1-00/351A 35134/5
JF112TC1-00/392A 39214/5
127-112*85

JZX-4TC1-CJ60(112°)

JF113TC1-00/402A 320

295*135°

40228/6
JF113TC1-00/514A 51454/6

A201 Circular Comb for Cotton Combing Machine
circular comb for cotton combing machine Type Part number Outside diameter & inner diameter Width insert cavity position total number of gears/group
127-81*72 JZX-III-A201(81°) JF101-00/122 Φ127
Φ72
305 265*135° 12188/3
JF101-00/134 13352/3
JF101-00/148 14832/3
JF101-00/205 20480/3
JZX-IIIB-A201(81°) JF101B-00/230 23028/3
JF101B-00/332 33220/3
127-90*72 JZX-4-A201(90°) JF106-00/056 05570/5
JF106-00/153 15264/5
JF106-00/191 19074/5
JZX-4B-A201(90°) JF106B-00/265 26466/5
JF106B-00/309 30905/5
127-85*72 JZX-4C-A201(85°) JF106C-00/184 18361/5
JF106C-00/331 33107/5
JF106C-00/370 36979/5

A251 Circular Comb for Cotton Combing Machine
circular comb for cotton combing machine Type Part number Outside diameter & inner diameter Width insert cavity position total number of gears/group
150-75*90




JZX-III-A251(75°)


JF110-00/151 Φ150
Φ90





320




270*135°




15075/3
JF110-00/168 16762/3
JF110-00/176 17587/3
JZX-IIIB-A251(75°)

JF111B-00/227 22704/3
JF111B-00/232 23240/3

VC250 Circular Comb for Cotton Combing Machine
circular comb for cotton combing machine Type Part number Outside diameter & inner diameter Width insert cavity position total number of gears/group
127-91.5*95


JZX-4-VC250(91.5°)


JF114-00/135 Φ150
Φ95



332


294*140°


13547/6
JF114B-00/251 25122/6
JF114C-00/318 31754/6


Textile Spare Parts for Comber Machine Saw Whole Cylinder Jzx-4tc1-Et/5 or Jsfa286-0800-19



Assurance,
 100% quality manufacturing.

 We guarantee that our products meet your supplied specifications
 Extremely competitive pricing
 2---4 week lead times
 Partial container orders
 Flexible payment options

 Complete after-sales service
Textile Spare Parts for Comber Machine Saw Whole Cylinder Jzx-4tc1-Et/5 or Jsfa286-0800-19

FAQs

1. Where is your location?
  We are located in Qingdao City of China. It takes 40minuts by car from Liuting Airport our company.
2. How long has the company been established?

AT INDUSTRY was established in 2009. There is 8 years exporting experiences.
3. What proportion of your goods are exported?
 100% of our production are exported to all over the world.
4. Which countries do you export to?

Exports to all parts of the world,Southeast Asia,Europe,America.
5. What proportion of your goods are exported?
 100% of our production are exported to all over the world.
6.What basis can we buy goods?

Mainly Chinese textile machine and spare parts.
7. Which currency can we buy in?

We can deal in USD.






specification:

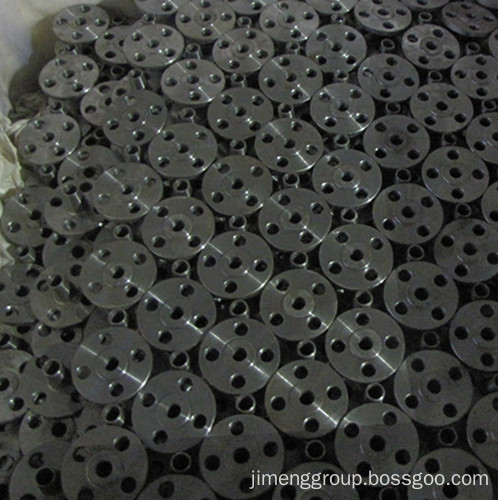

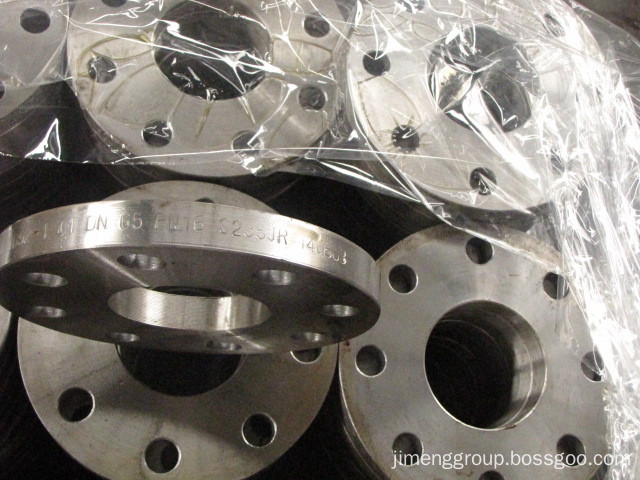

FLANGE WELD NECK

PN6,PN10,PN16,PN25,PN40,PN63,PN100,PN200

DN15-DN1600

FLANGE GOST-12821-80

Type:Welding neck(WN)


Material:CT20,16Mn,stainless steel 304/316/316L,Q235

Processing technic:Forging

Surface treatment:Rust-preventative oil

Butt welding flange is two large diameter pipe connection device, usually two flange and number of the bolt, its plastic strength is low, after adding suitable amount of carbon becomes hard, plastic lower strength enhanced.Connection it may need to bear very high tensile, compression, torsion and shear strength.Butt welding flange conveniently, manufacture simple, low cost, widely used, but with poor rigidity, therefore shall not be used for supply and demand, flammable, explosive and high vacuum degree requirements of the chemical process piping systems and height, extremely dangerous situations.Sealing surface type plane and surface.Butt welding flange welding electrode consumption is much, can not stand high temperature, high pressure, repeated bending and temperature fluctuations.
