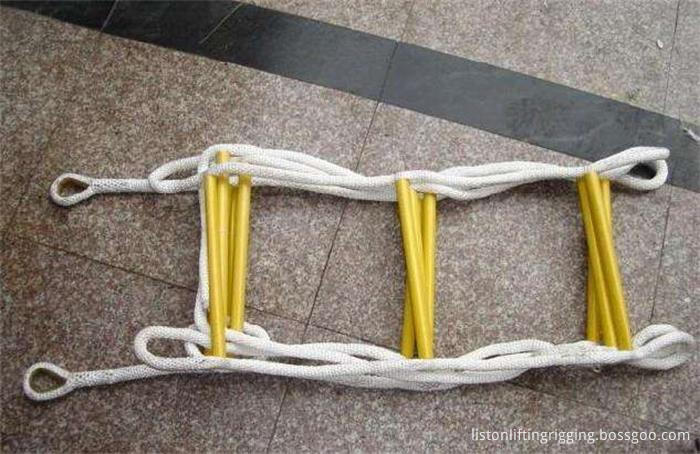

Rope Ladders
Rope ladders are ladders which are made from two long, parallel ropes which are connected with short steps. Those steps are made from various materials, wood, iron tubes, aluminium , or even rope.
The rope ladder has no length limited, soft convenient in transportation lightweight and other features. The main benefit of rope ladders, is the possibility to roll them and to carry them in this compact, barrel like form.
The overall framework for the rope ladder , two side ropes using weave , disposable braided rope into H -type right to wear crosspiece were woven into the side of the lower end of its rope into shaping.
Crosspiece using round ( square ) epoxy pipe . The use of safe and reliable. Ladder length limit has not , soft , easy to transport , the use of lightweight characteristics ; has cored nylon rope ladder ,rope ladder , insulation ladder, with protective ladder ; insulation ladder using silkworm silk cord or nylon rope weaving, down tube insulation tube , especially for electricity live working construction; rope ladder pull 500kg, insulation ladder pull 300kg.
Features:
1.Material: polyester resin tube
2.Load capacity: 350 kg
3.Acid resistance: high
4.Anti-alkali: high
5.Life time:5-6 year
Instructions:
Rope ladders are ladders which are made from two long, parallel ropes which are connected with short steps.
Those steps are made from various materials, wood, iron tubes, aluminium, or even rope.
The main benefit of rope ladders, is the possibility to roll them and to carry them in this compact, barrel like form

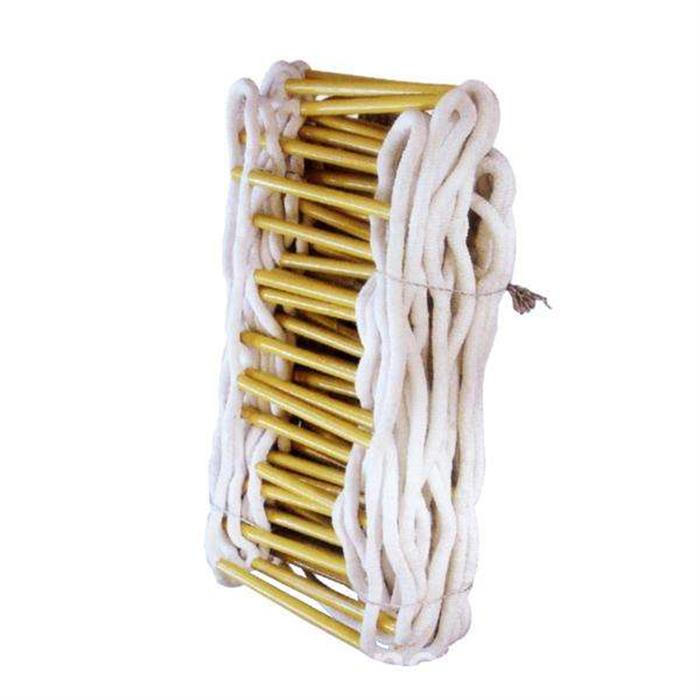

3 Insulated soft ladder with 20m
Safety Rope Ladder Main Parameter
Color:
white or can be customized
Rope Material :S
Silk / Nylon / Poly amide rope and so on
Rung Material:
Wood rung or FRP rung
Width:
32cm
Length:
10m.15m.20m.30m.40m.50m or can be customized
Load capacity:
350 kg
Package:
Carton package or bags package
Life time:
5-6years
Rope-Ladder,Rope Folding Ladder,Climbing Rope Ladder,Boat Rope Ladder
